Build a Flight Tracker

Tutorial

visualize a real flight from Busan to Seoul, with radar data collected by FlightRadar24.

setp 1: Set up

1. Create a new Glitch project
2. your_token_here -> Replace your access token

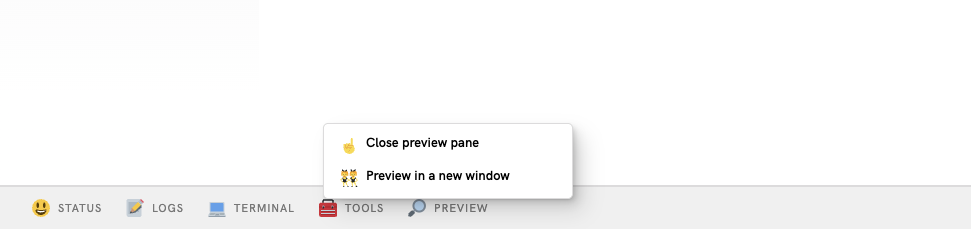

3. PREVIEW click and select Close preview pane || Preview in a new window




// index.html


// import CesiumJS library.
<script src="https://cesium.com/downloads/cesiumjs/releases/1.129/Build/Cesium/Cesium.js"></script>
<link href="https://cesium.com/downloads/cesiumjs/releases/1.129/Build/Cesium/Widgets/widgets.css" rel="stylesheet">


// HTML container for the scene
<div id="cesiumContainer"></div>

<script>
Cesium.Ion.defaultAccessToken = 'Your API Token'
// Initializes the viewer
const viewer = new Cesium.Viewer('cesiumContainer');
</script>

Configure auto-refresh

check Toggle auto refresh

Step 2: Add global 3D buildings and terrain

• Cesium World Terrain—high-resolution terrain with up to 1 m accuracy.
• Cesium OSM Buildings—over 350 million buildings derived from OpenStreetMap data.
• Bing Maps Aerial imagery—global satellite imagery with up to 15 cm resolution.

const viewer = new Cesium.Viewer('cesiumContainer', {
    terrain: Cesium.Terrain.fromWorldTerrain(),
});

// 동아대학교 승학캠퍼스
viewer.camera.flyTo({
    destination: Cesium.Cartesian3.fromDegrees(128.96639, 35.11424, 200),
    orientation: {
        heading: Cesium.Math.toRadians(0.0),
        pitch: Cesium.Math.toRadians(-15.0),
    }
});

/*
1. (async function())
2. promise chaining
*/
Cesium.createOsmBuildingsAsync().then(function(buildings) {
    viewer.scene.primitives.add(buildings);
});

Step 3: Visualize individual samples

1. to visualize a single point in yout scene
2. Click on the red point to see the description. and exact position or time

const dataPoint = { longitude: 128.96639, latitude: 35.11424, height: 200 };

const pointEntity = viewer.entities.add({
    description: `First data point at (${dataPoint.longitude},
    ${dataPoint.latitude})`,

    position: Cesium.Cartesian3.fromDegrees(dataPoint.longitude,
    dataPoint.latitude, dataPoint.height),

    point: { pixelSize: 10, color: Cesium.Color.RED }
});
viewer.flyTo(pointEntity);
